W8CXS PTO Repair

Hand written and drawn by Paul Koller

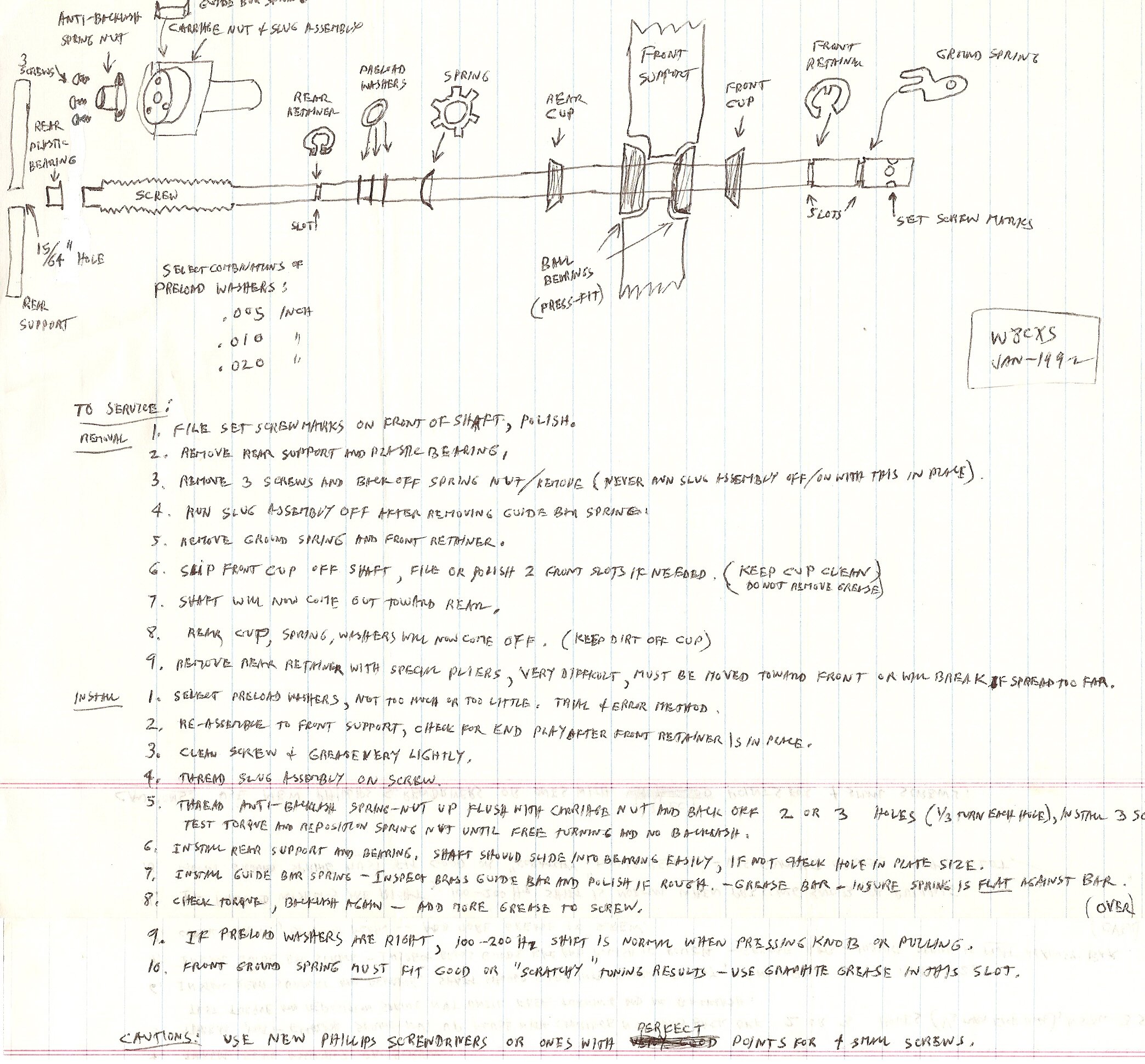

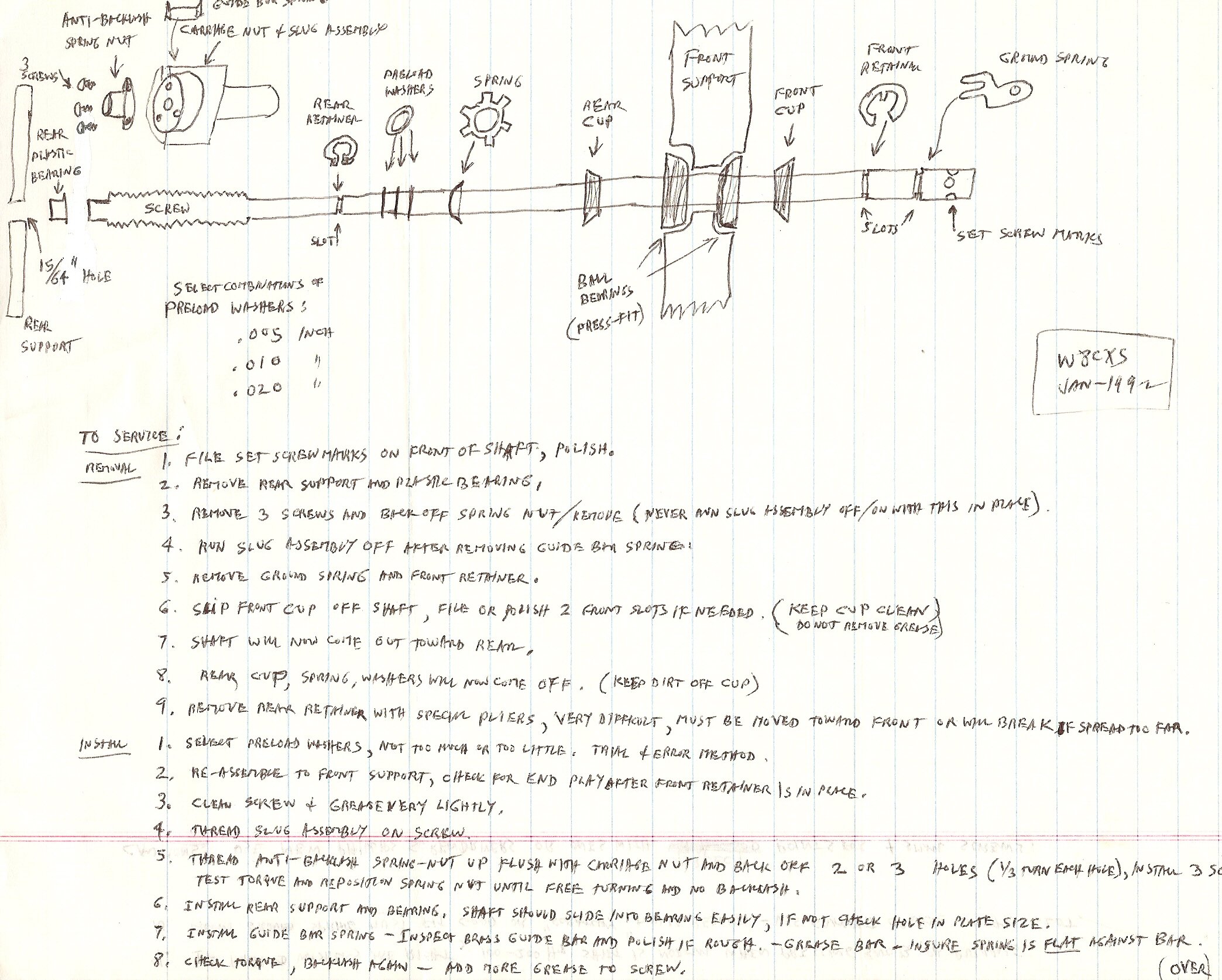

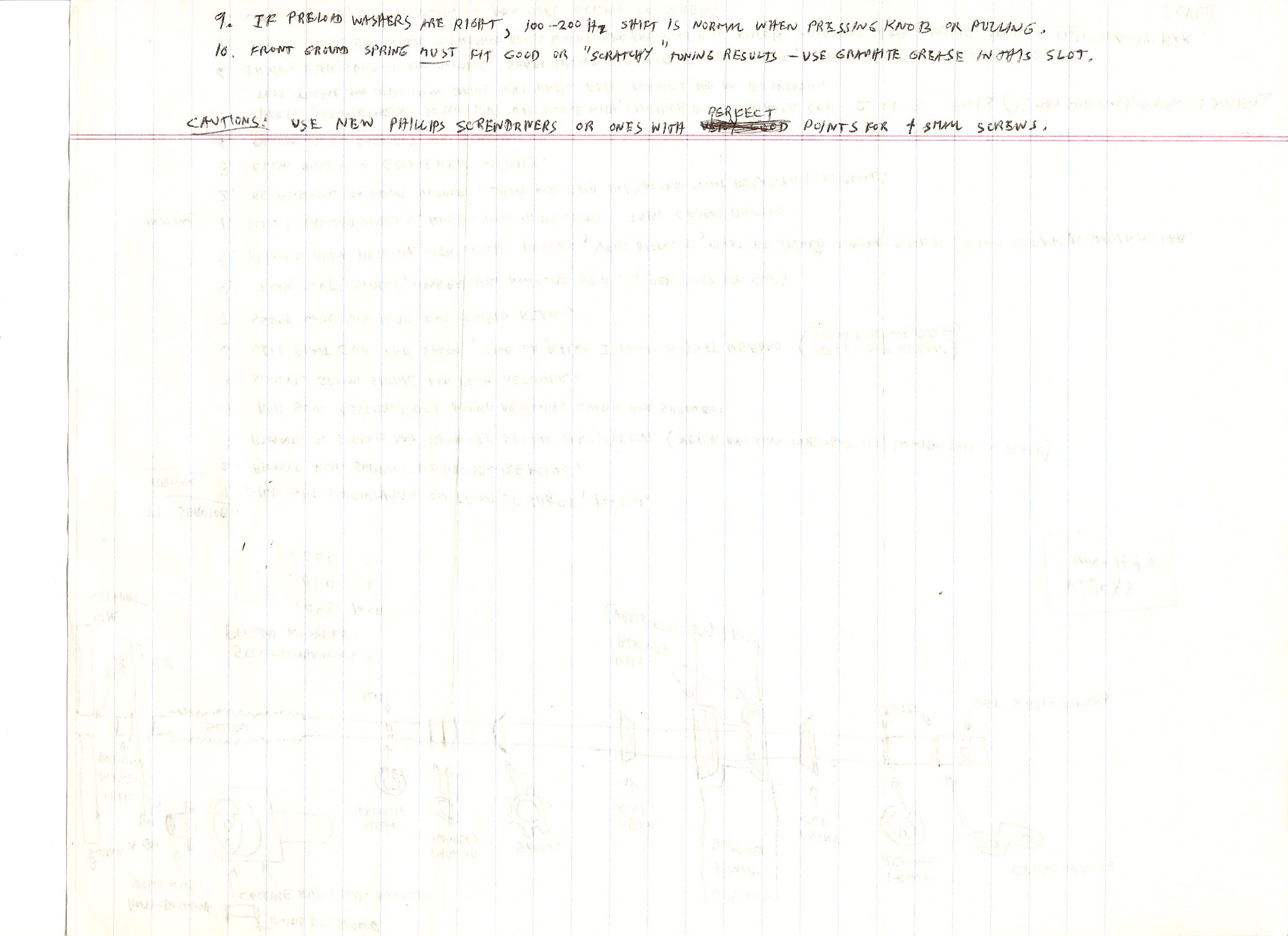

First two images are the original front and back.  The last is the two combined.
What a great piece of Signal One History from the most knowledgeable Signal One expert ever.
