Signal/One CX7A

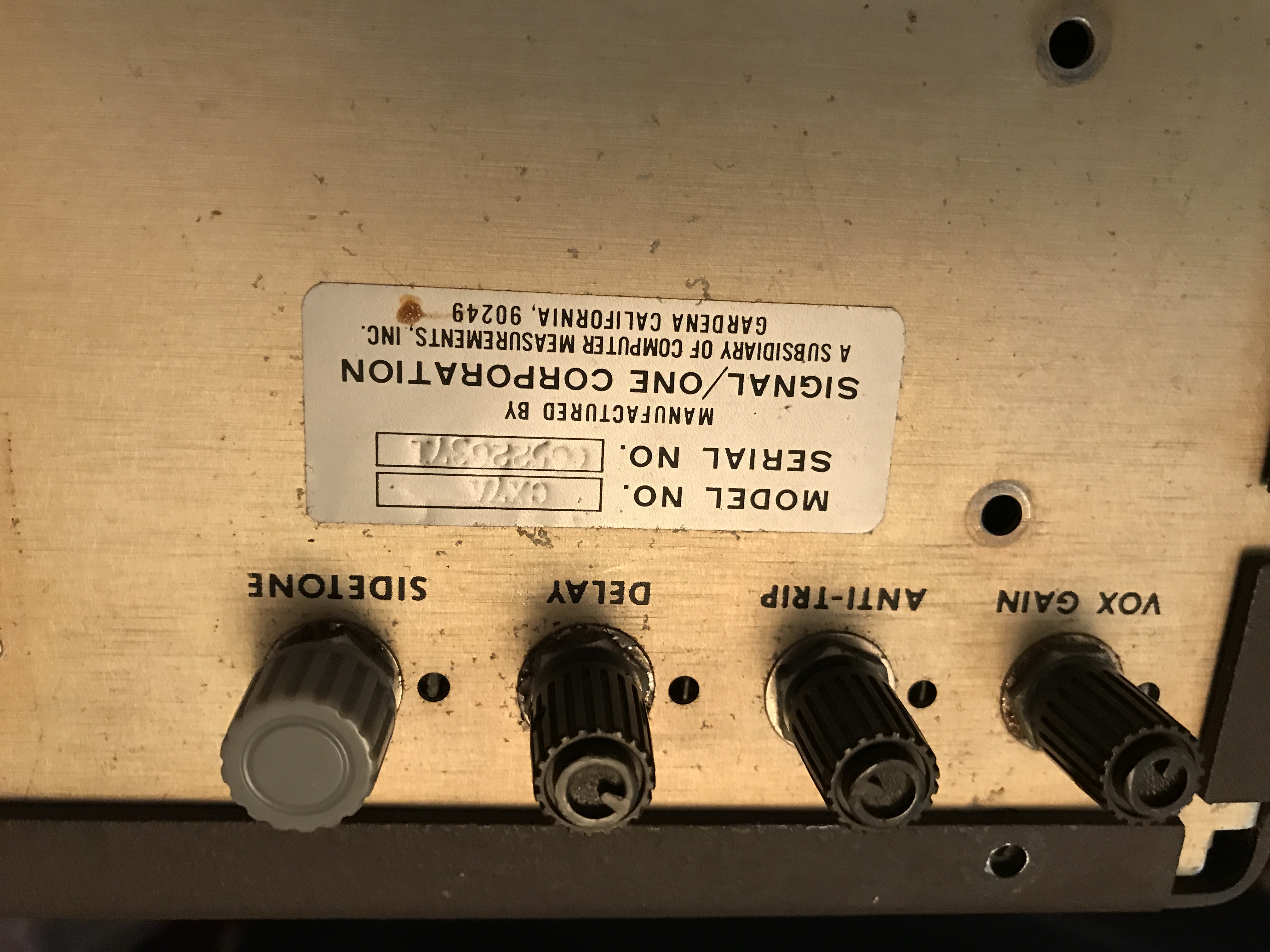

 S/N 0656226371
 This is the second restoration project from KD7BS.
Click on thumbnails below for larger image

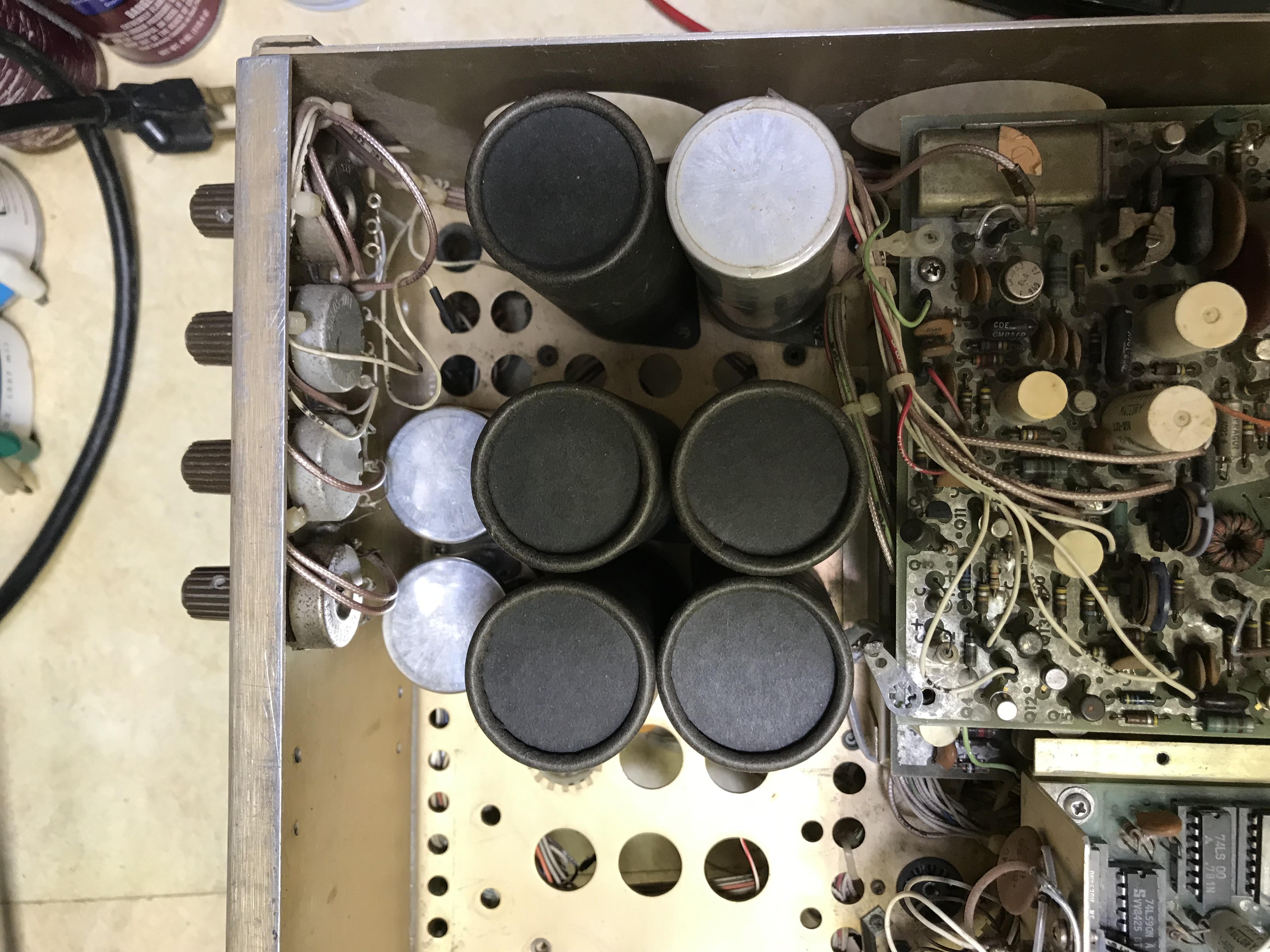

 This restoration is literally building a CX7A from a kit.  Three modules were missing but worst was the fact that all of the associated

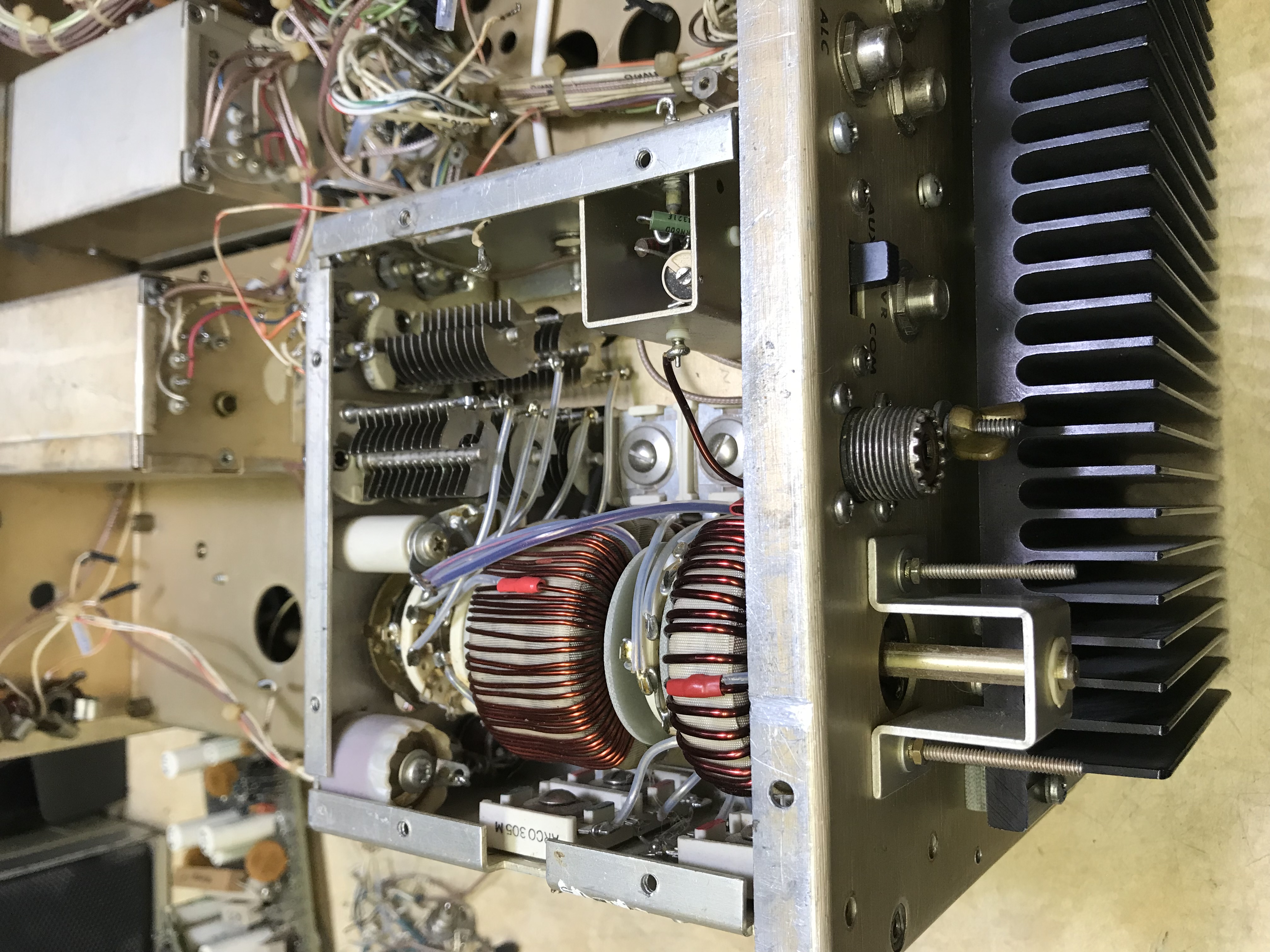

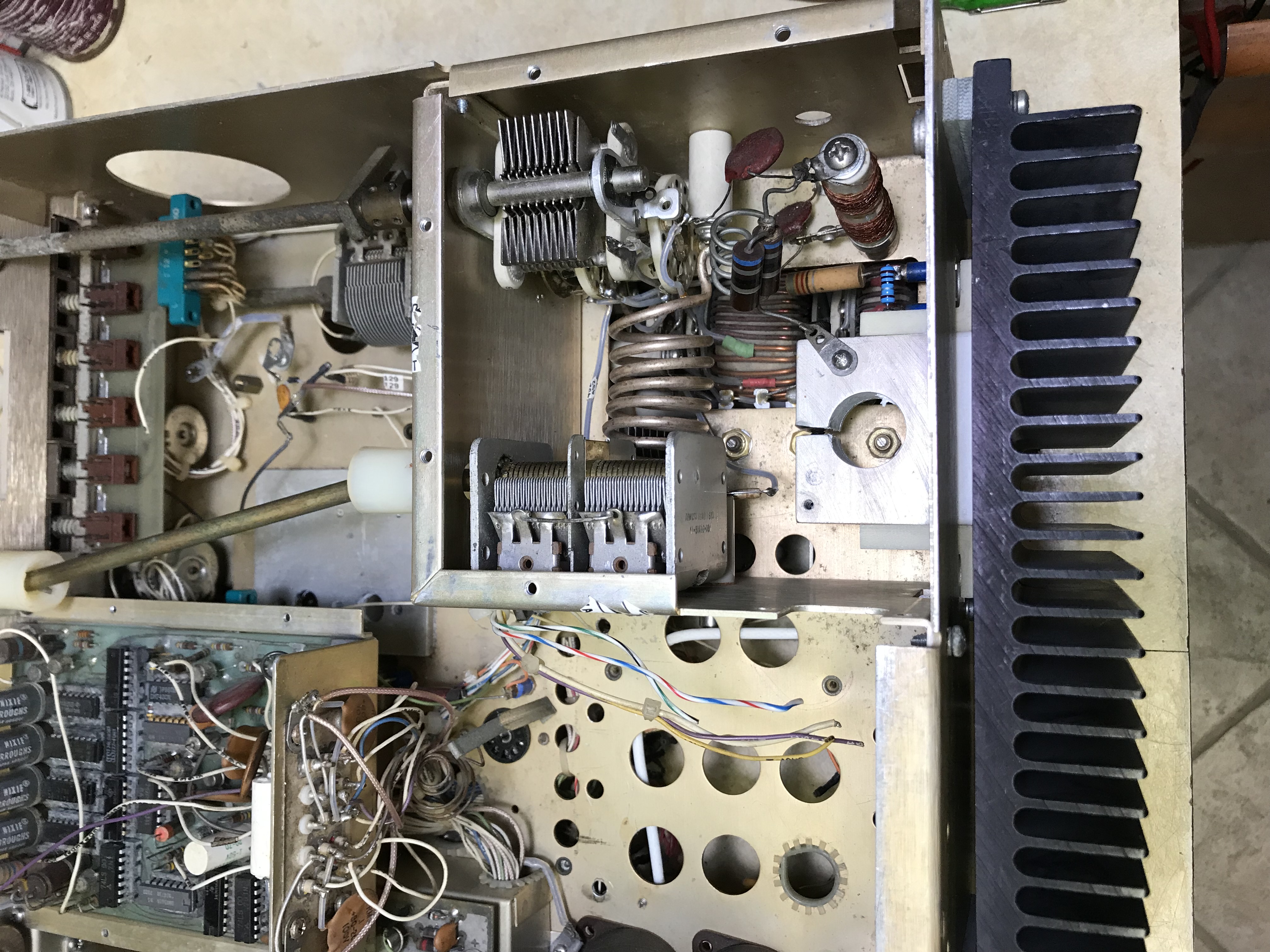

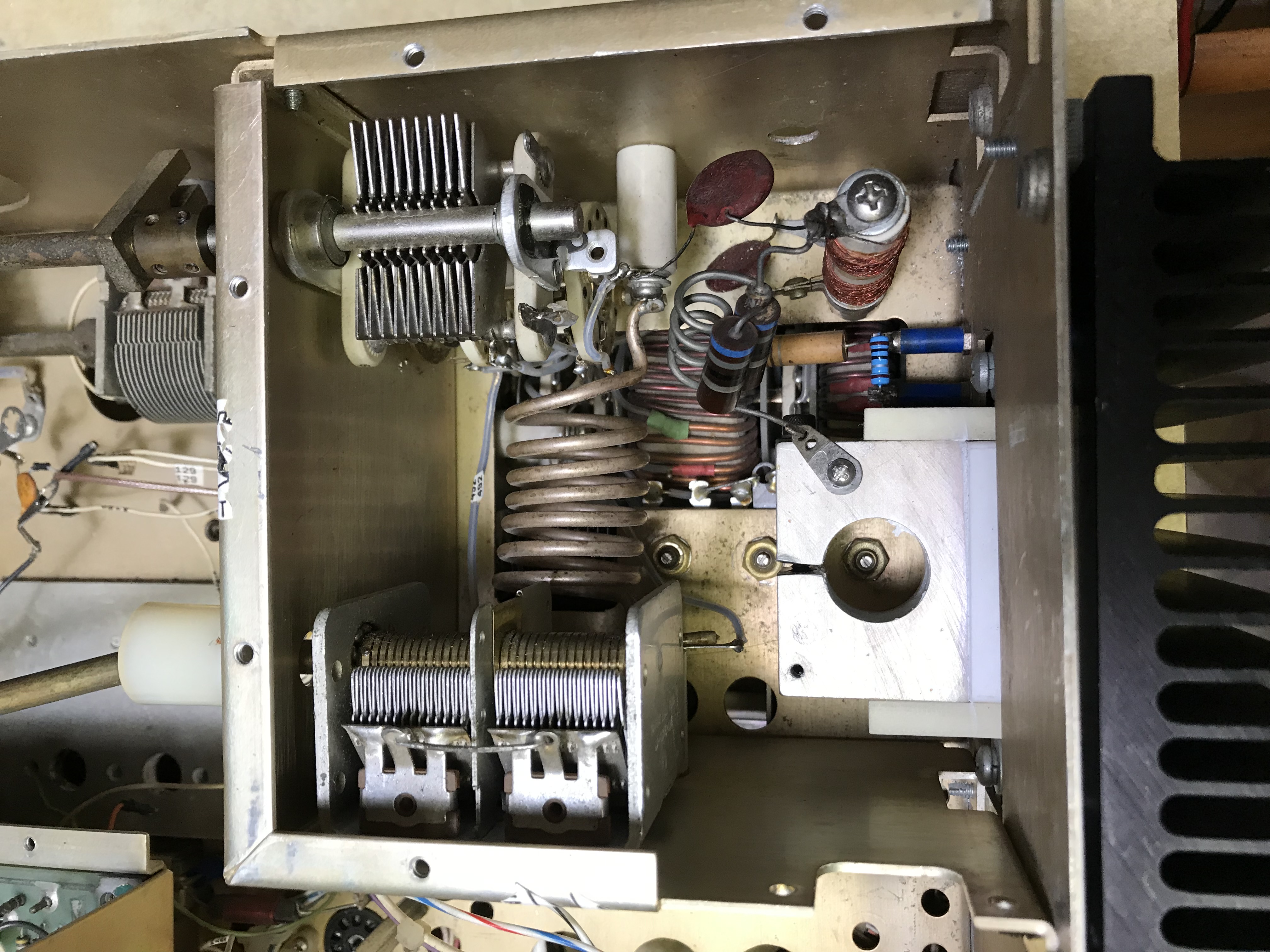

power supply parts were missing.  Both the upper and lower PA assemblies had been removed along with the Control switch assembly.

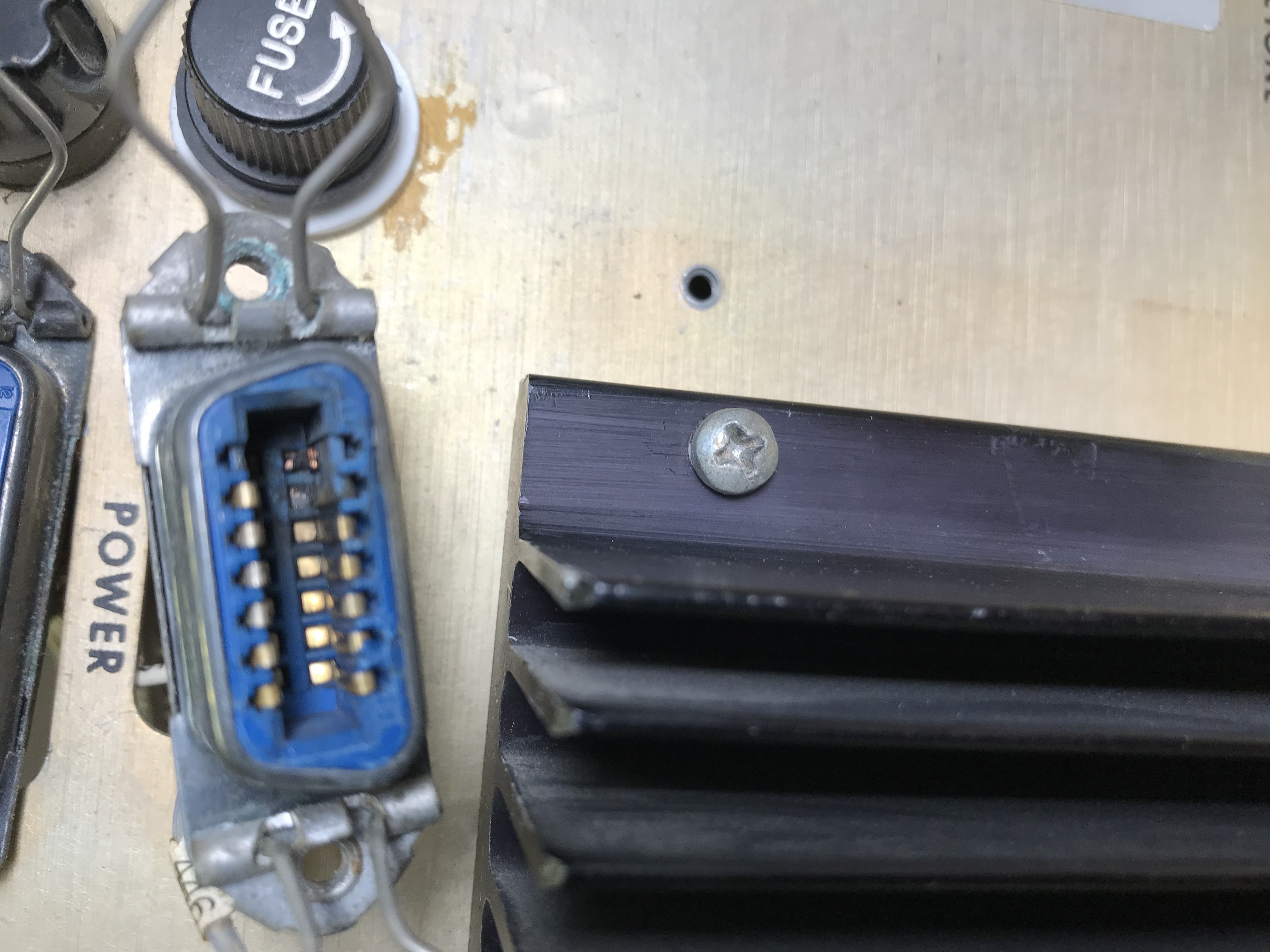

Many other smaller items were missing and the Power Jack had been blown to hell.

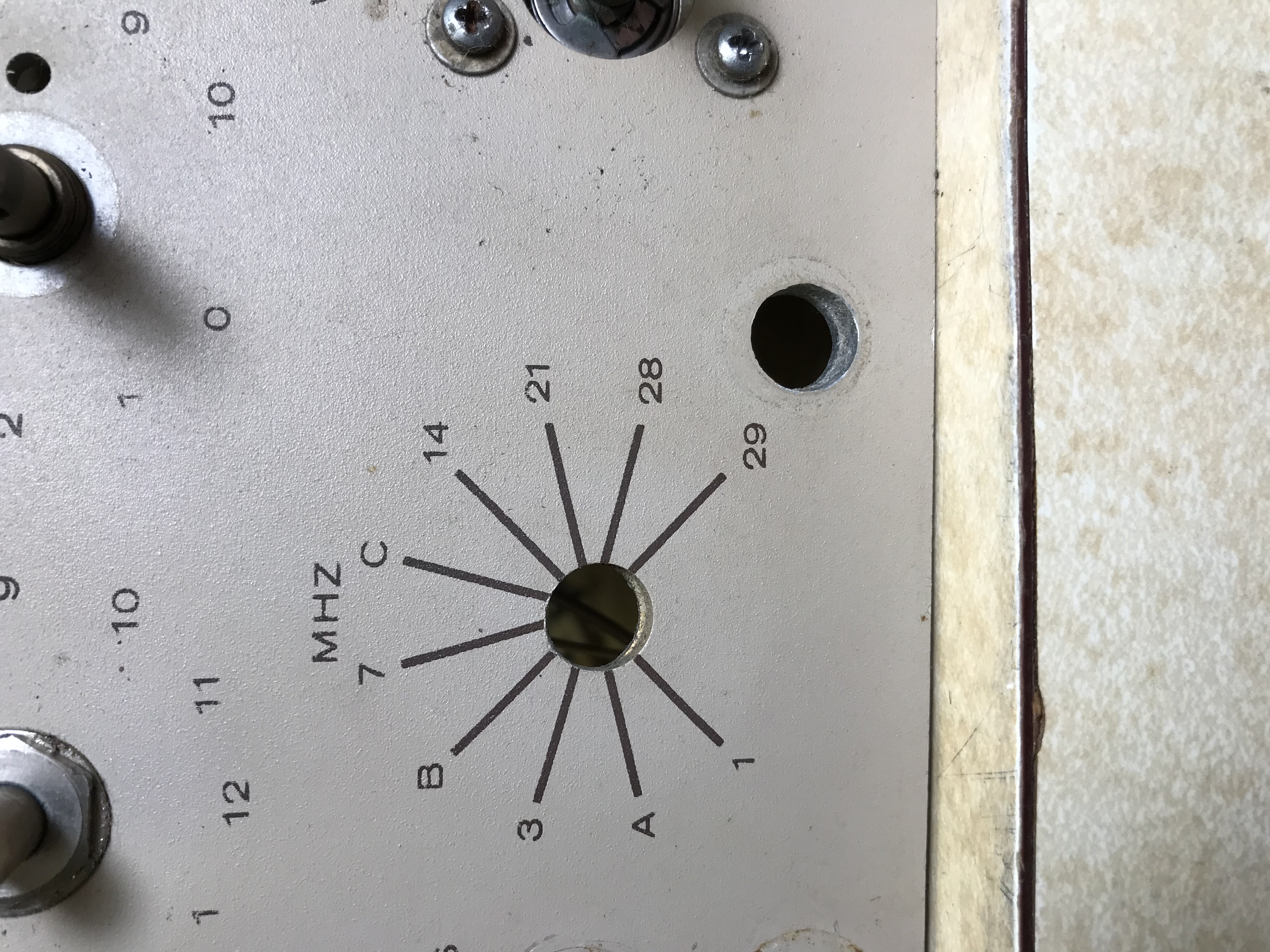

And to top it all off some stupid SOB drilled a hole in the front panel.

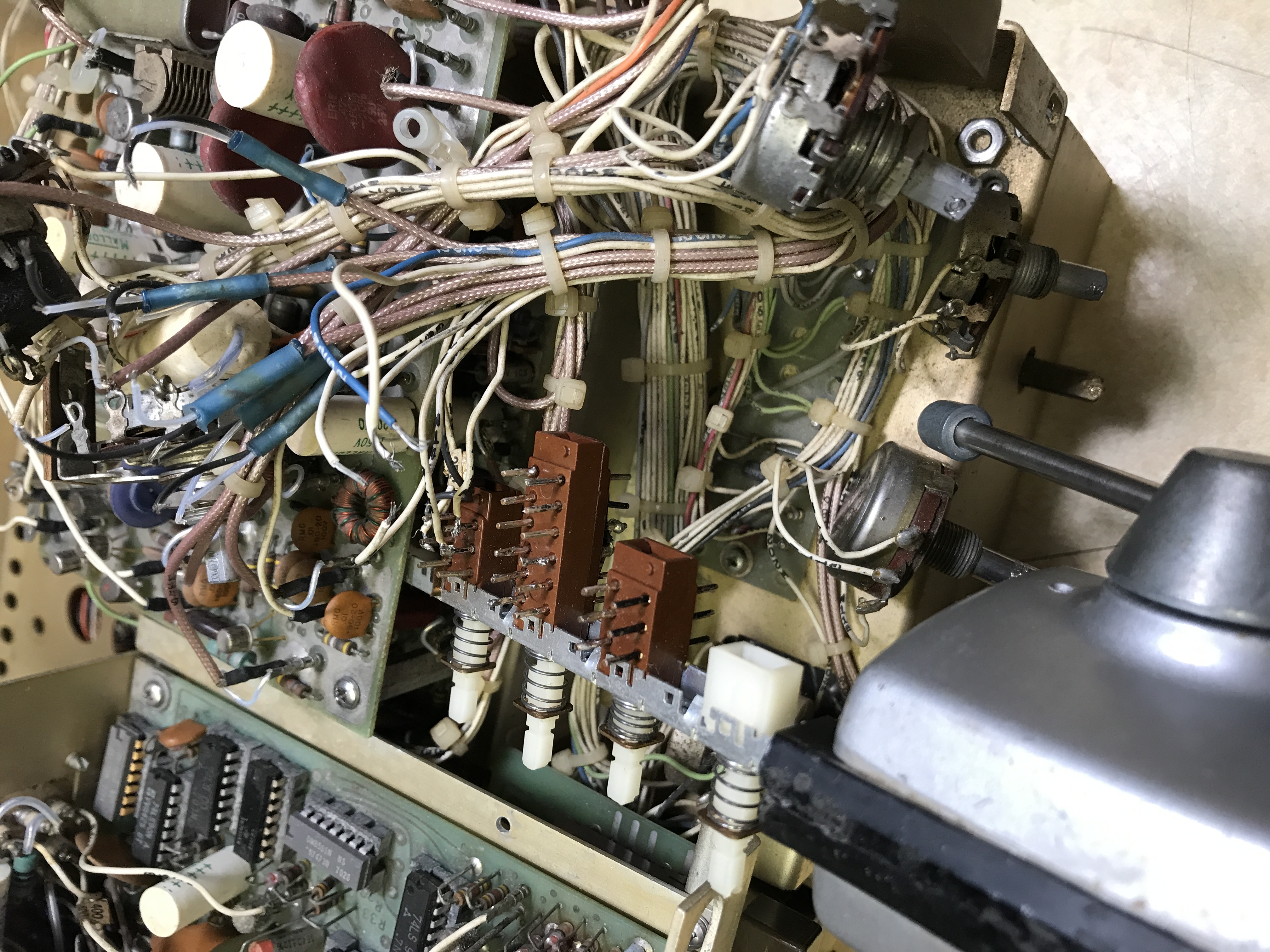

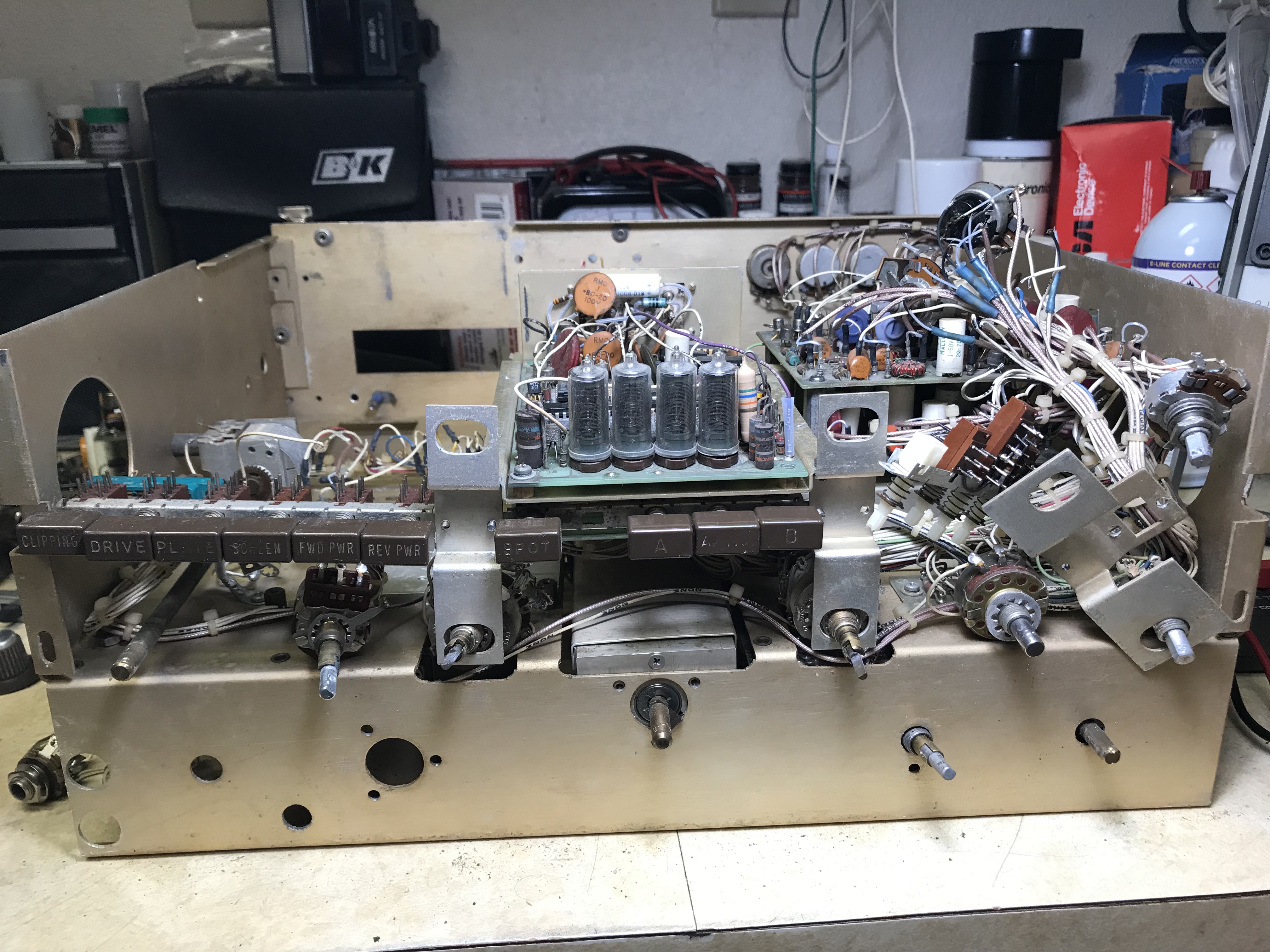

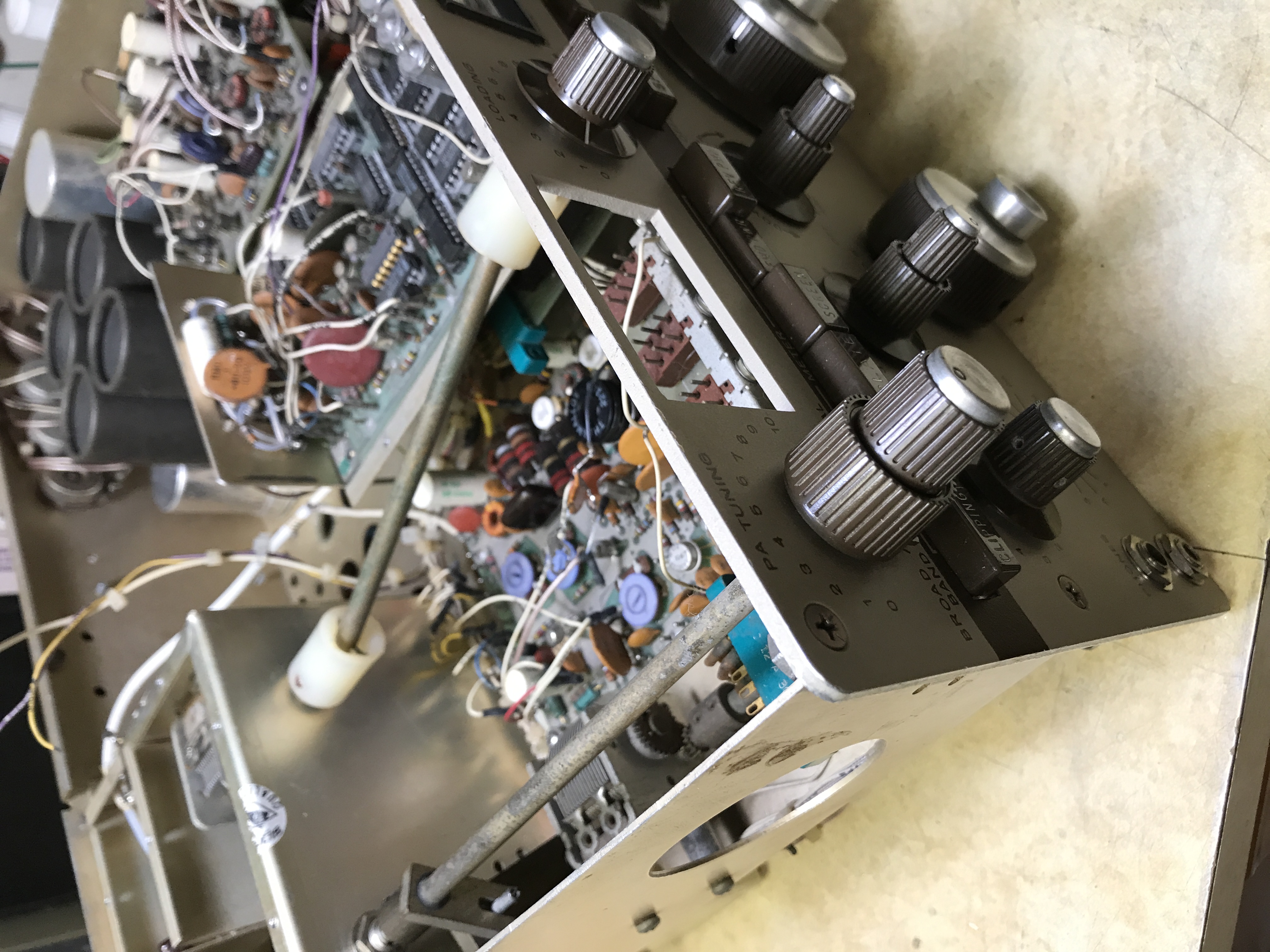

Removing the front panel did allow for an easier (albeit still difficult) installation of the missing switches.

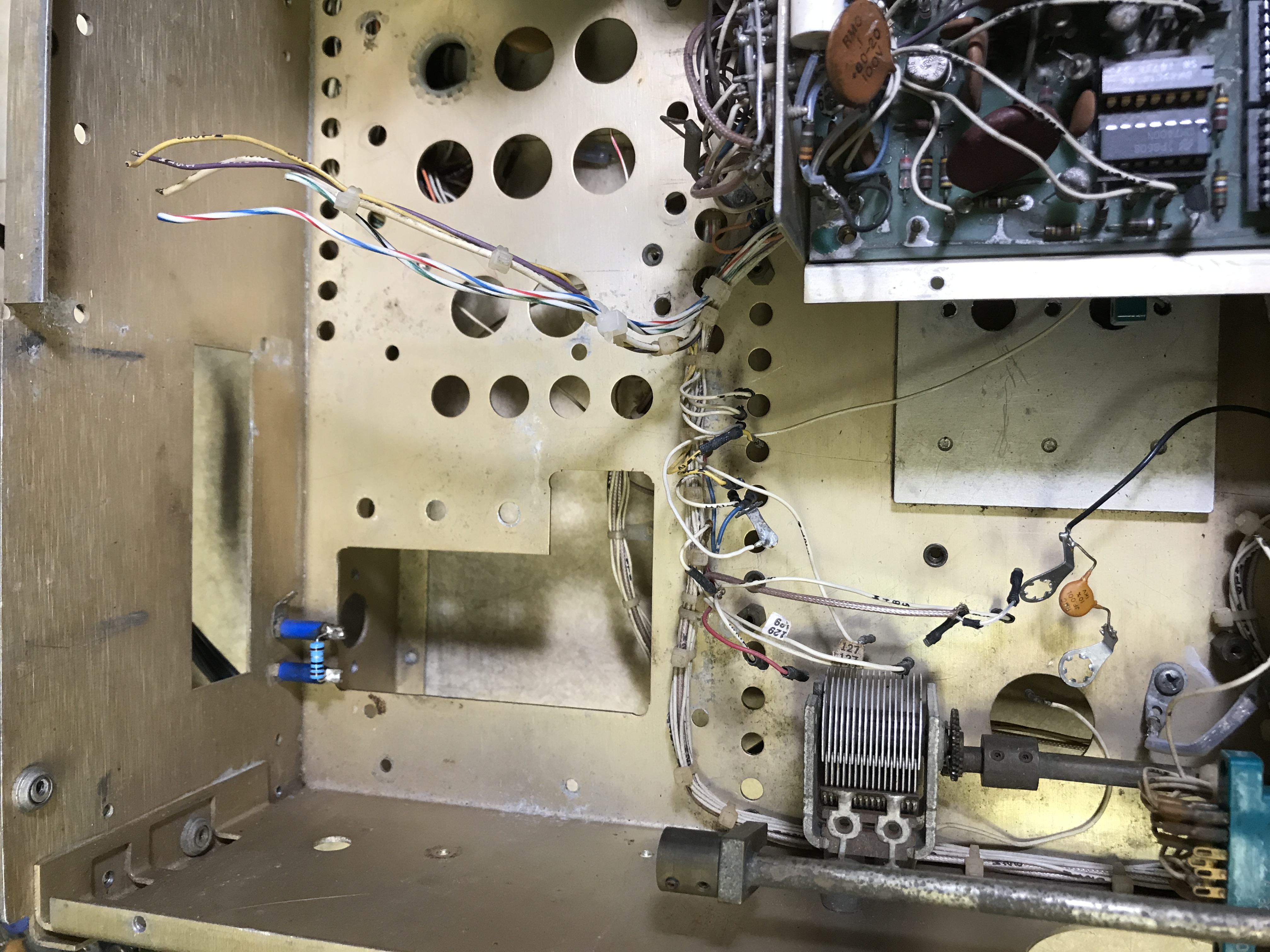

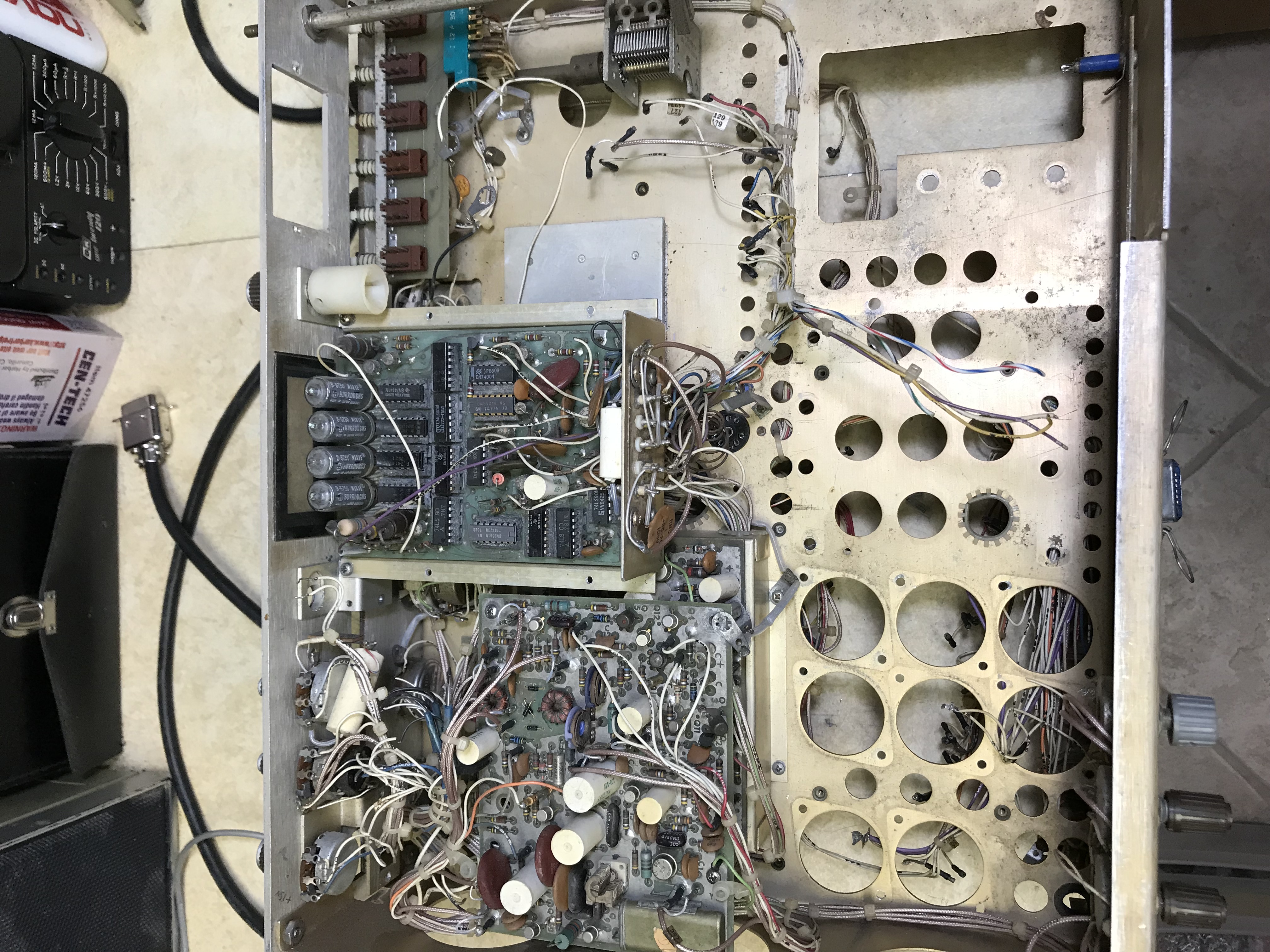

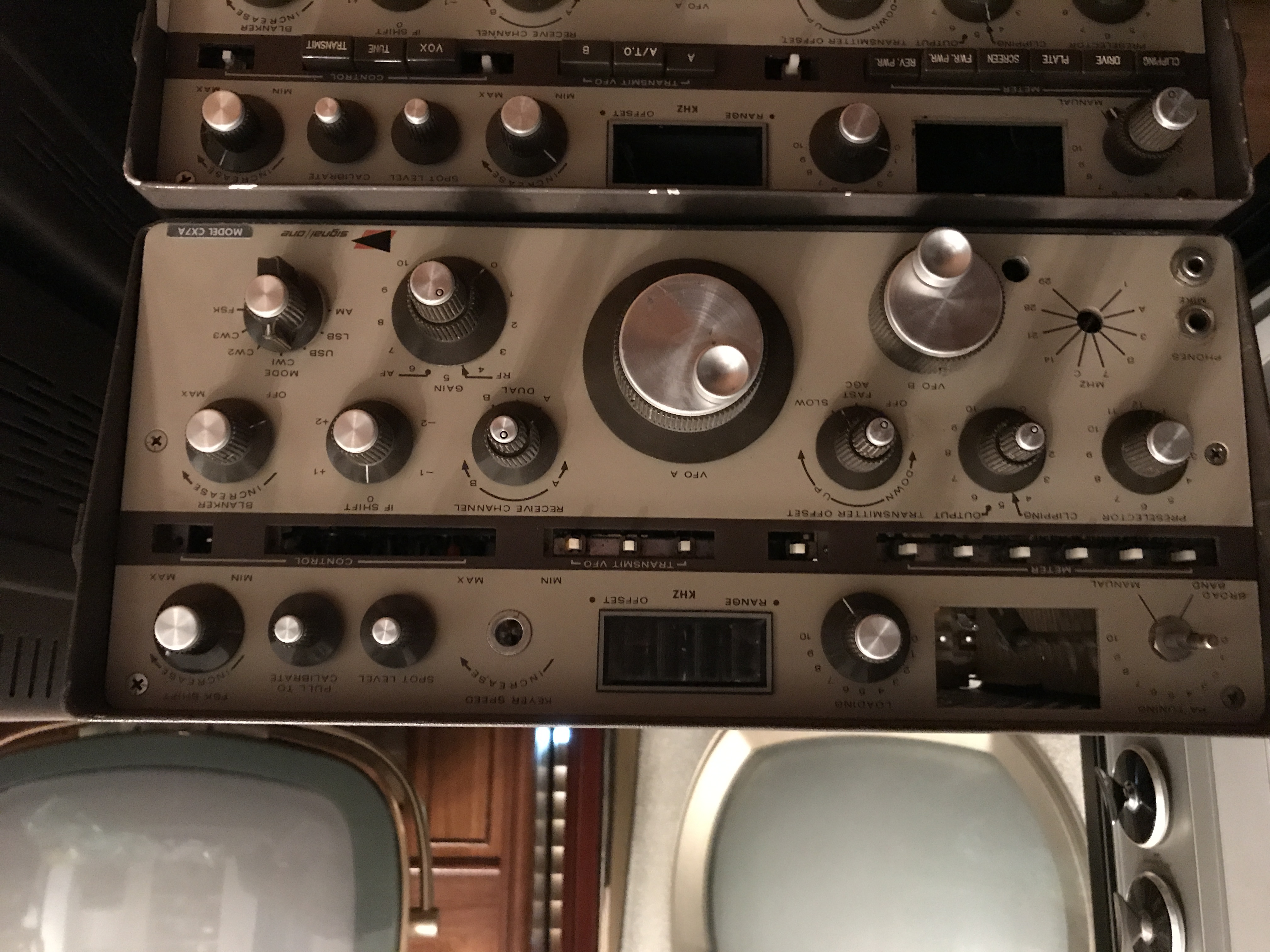

Before Restoration

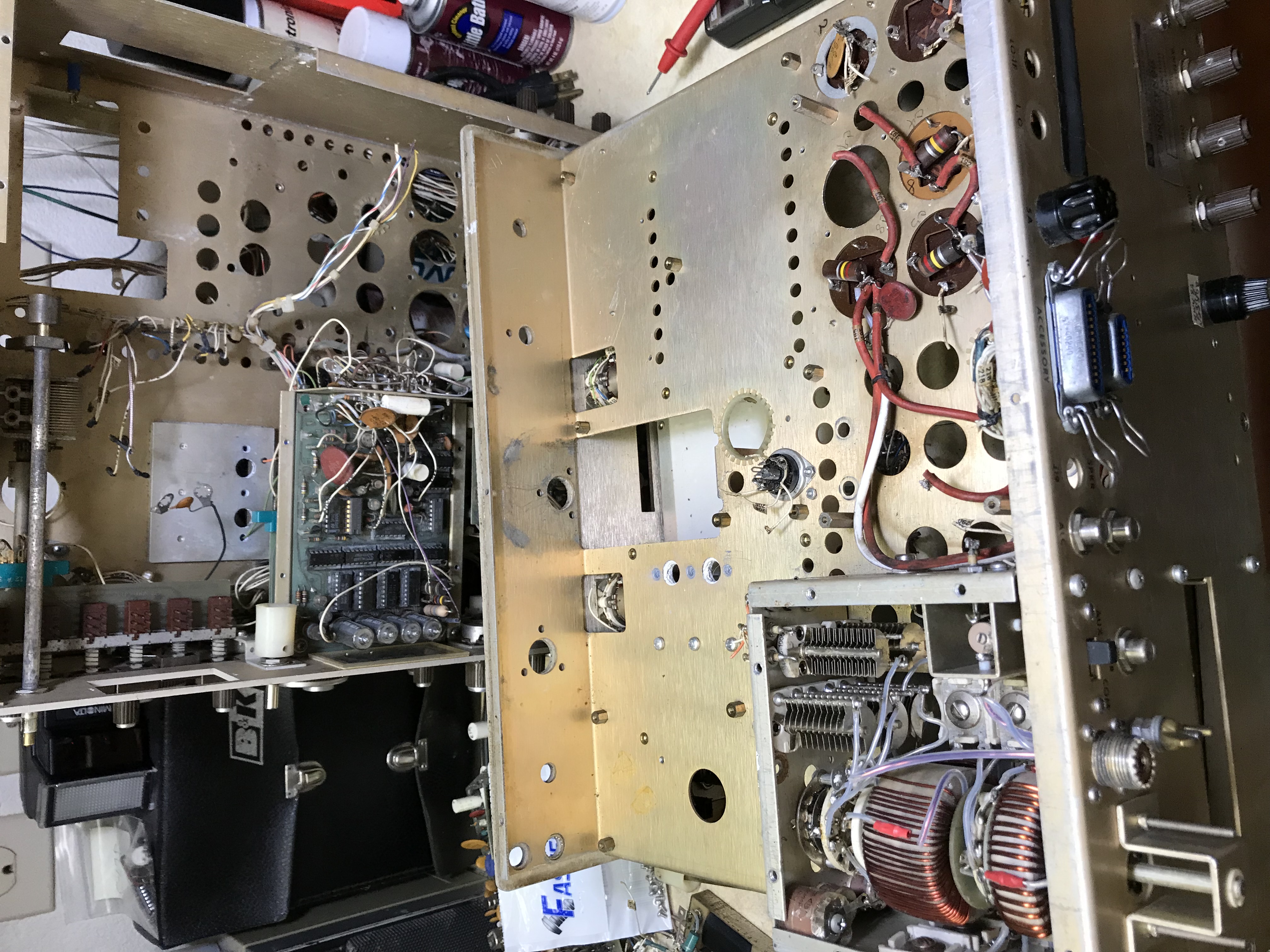

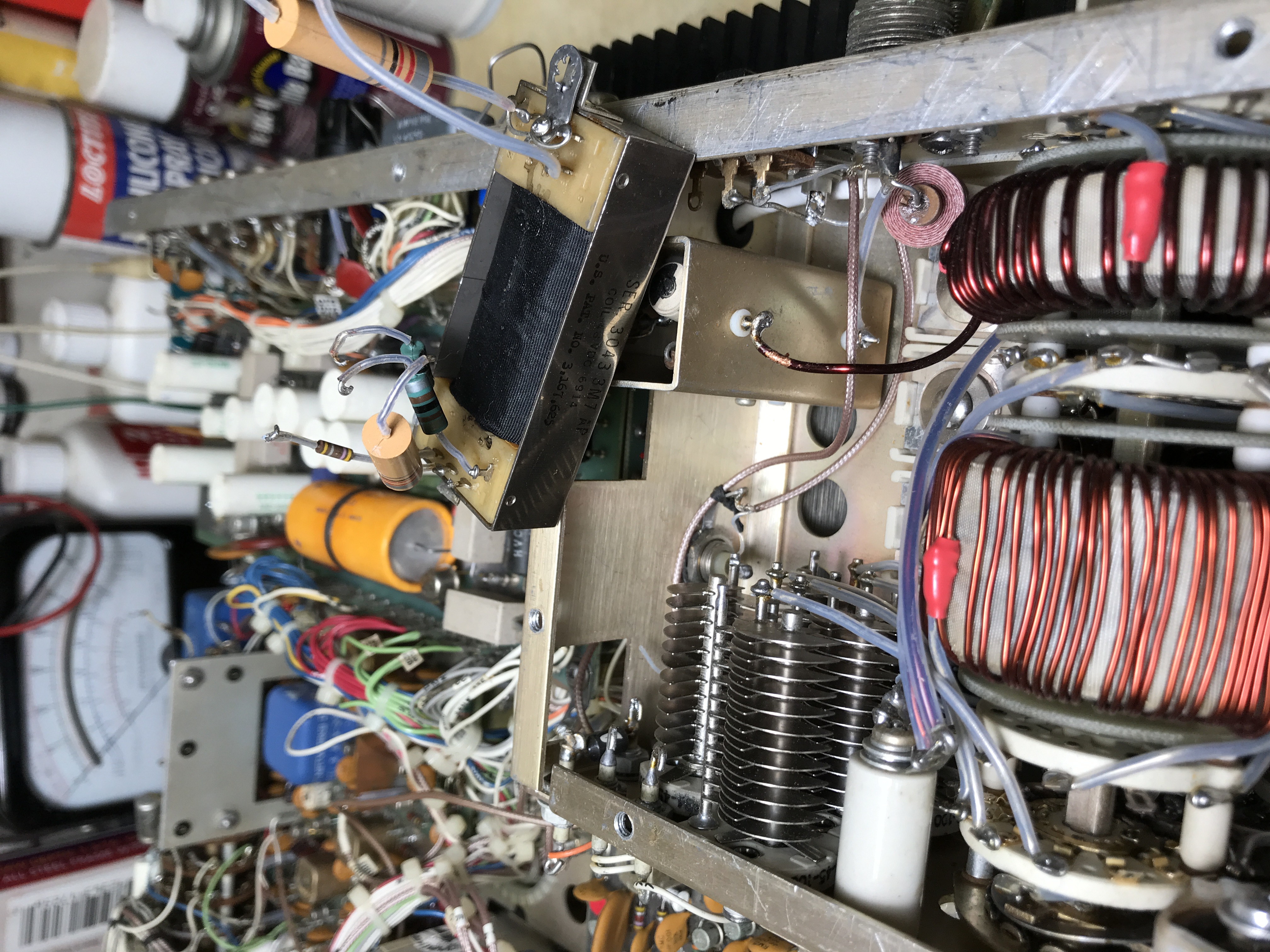

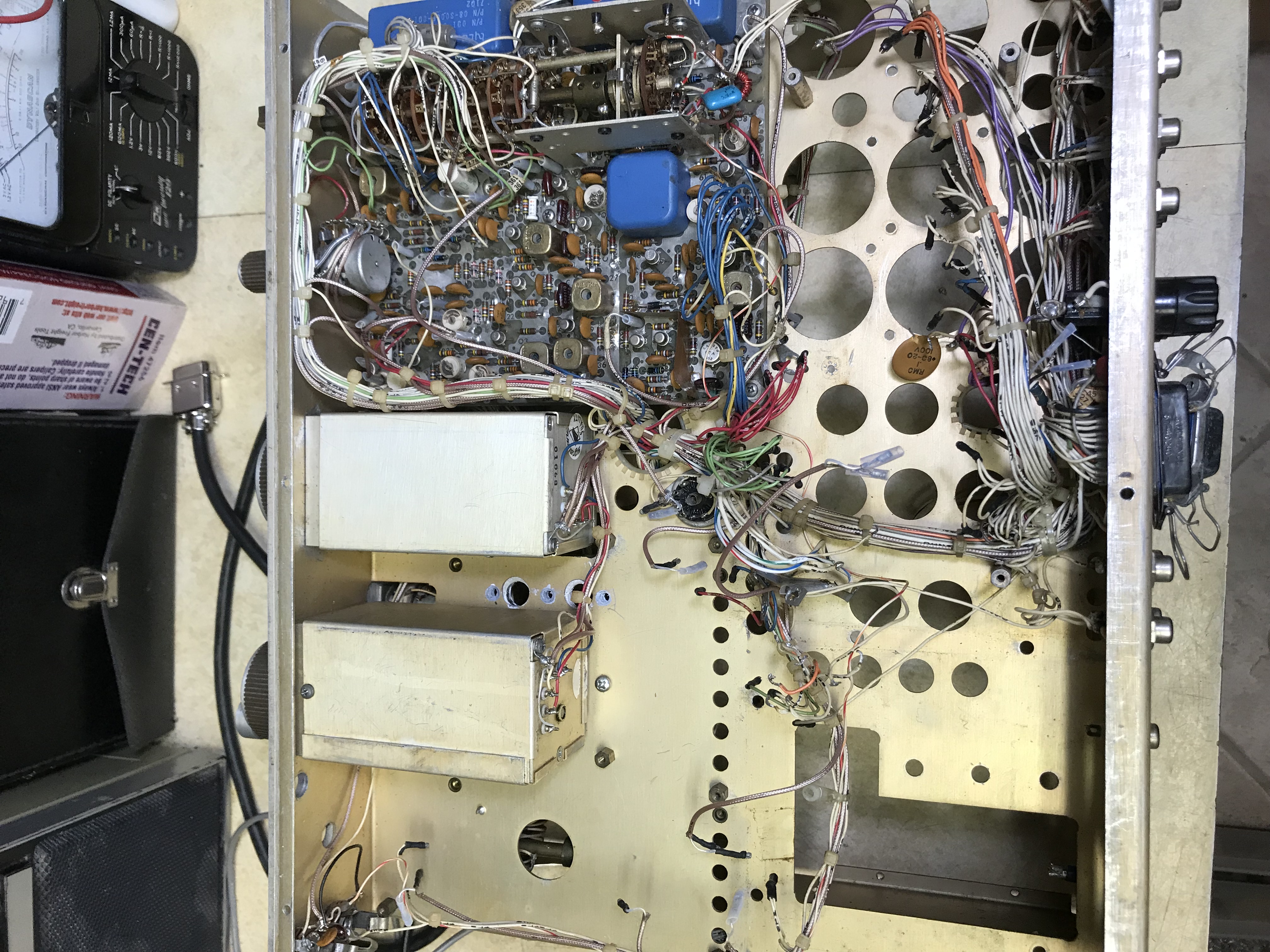

During Restoration

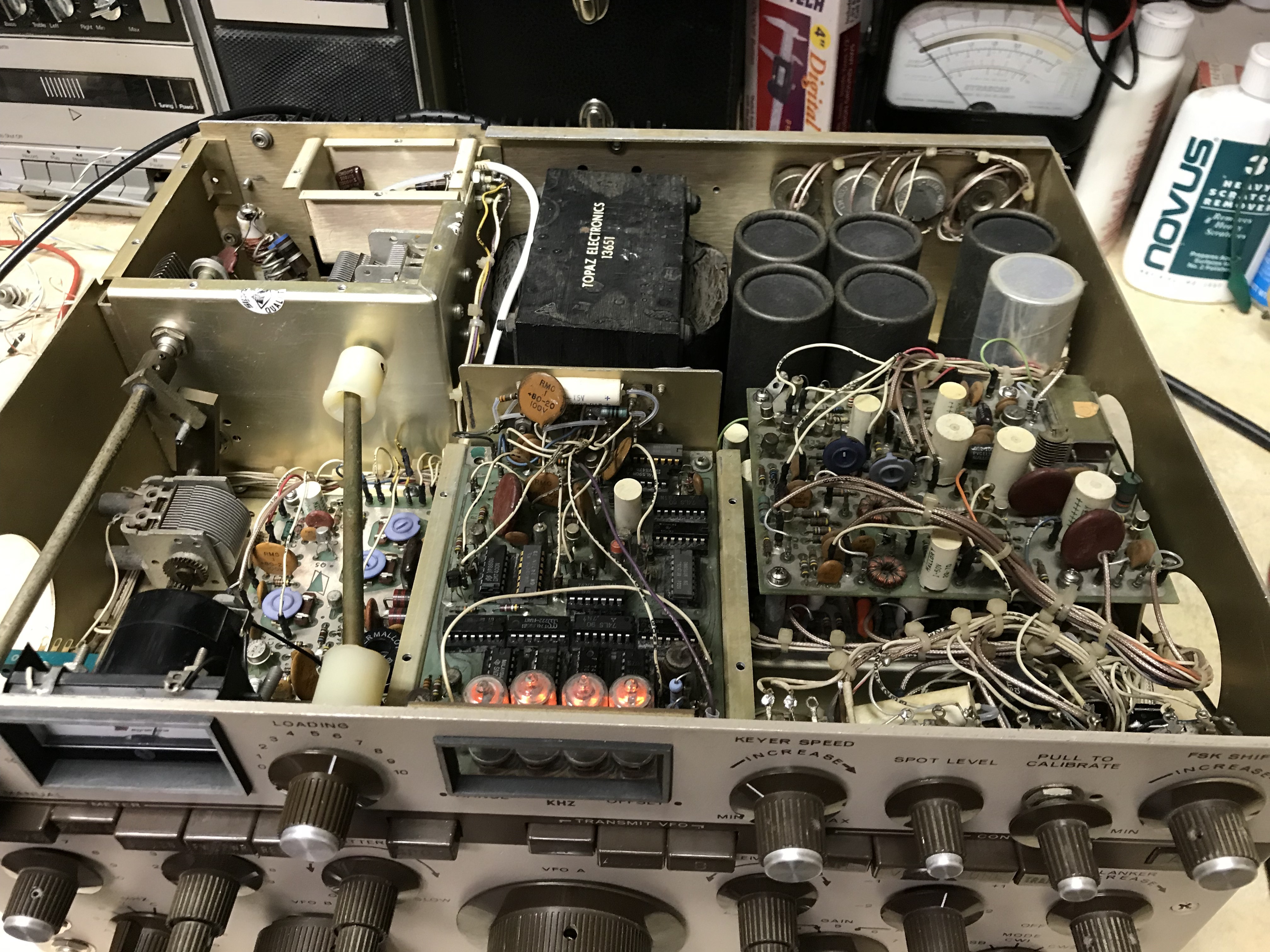

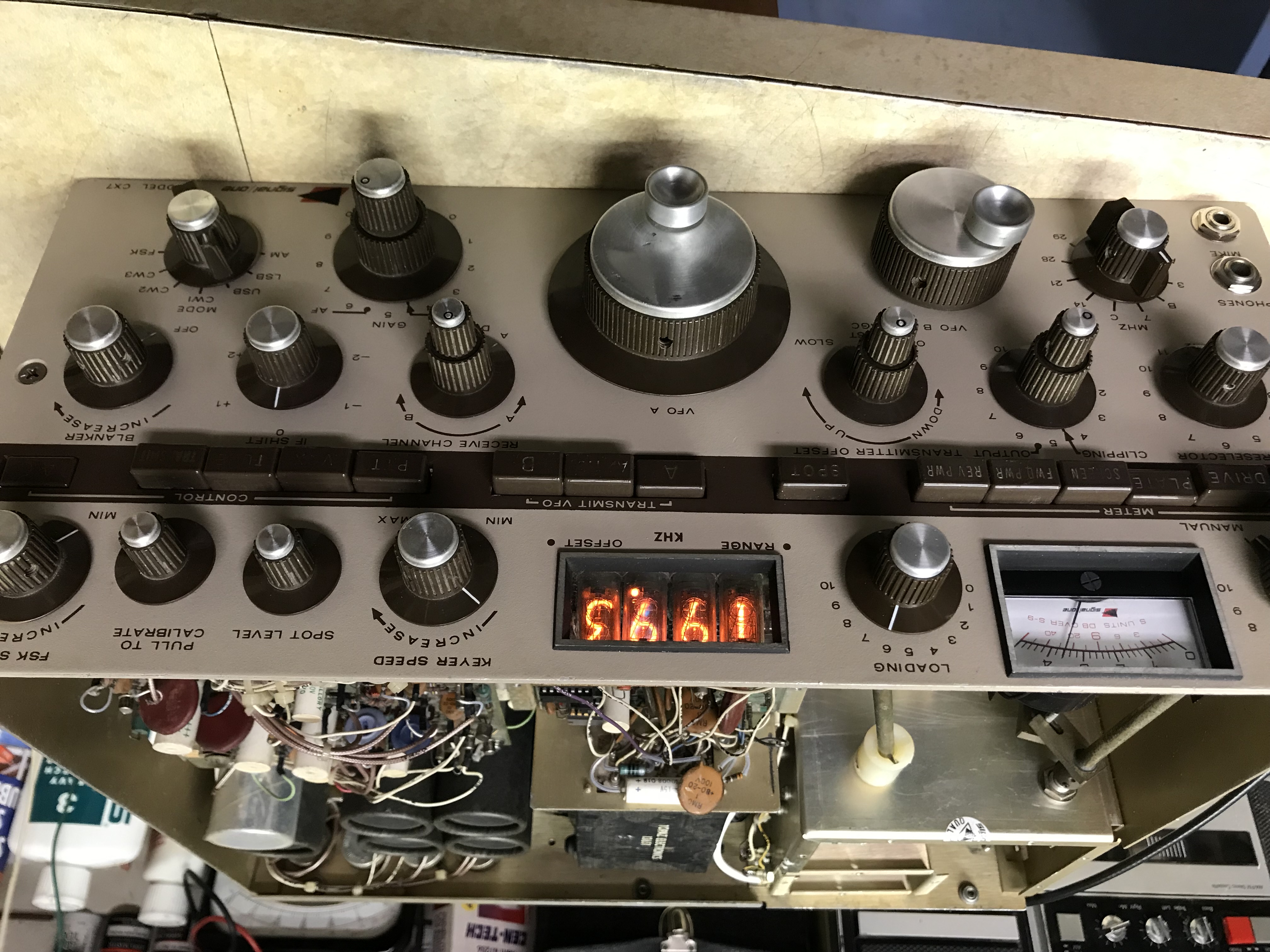

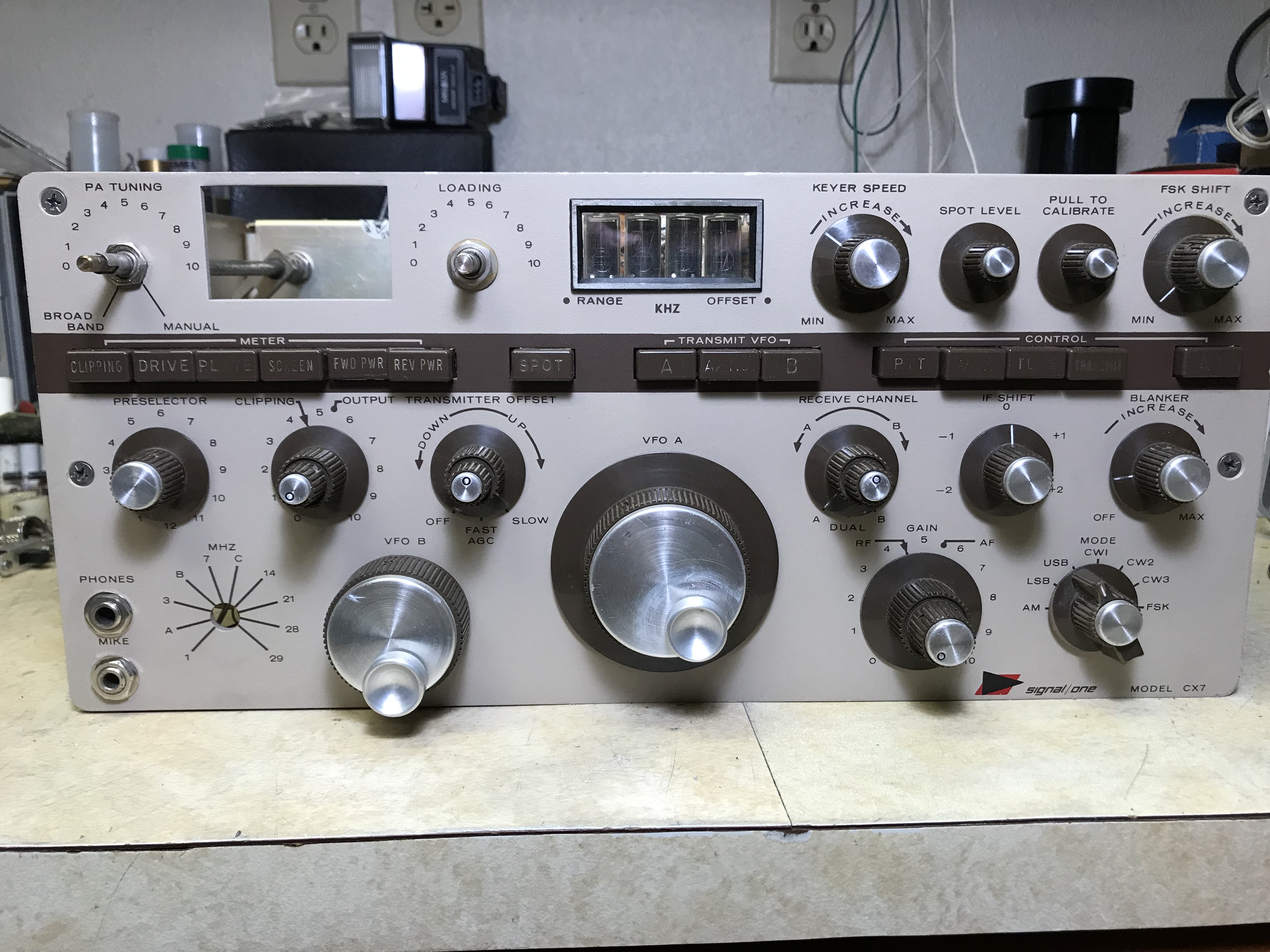

Restoration Complete
